私有镜像仓库Harbor

Harbor概述

Habor是由VMWare公司开源的容器镜像仓库。事实上，Habor是在Docker Registry上进行了相应的企业级扩展，从而获得了更加广泛的应用，这些新的企业级特性包括：管理用户界面，基于角色的访问控制 ，AD/LDAP集成以及审计日志等，足以满足基本企业需求。 官方地址：https://vmware.github.io/harbor/cn/

各组件功能如下：

组件	功能
harbor-adminserver	配置管理中心
harbor-db	Mysql数据库
harbor-jobservice	负责镜像复制
harbor-log	记录操作日志
harbor-ui	Web管理页面和API
nginx	前端代理，负责前端页面和镜像上传/下载转发
redis	会话
registry	镜像存储

harbor部署

Harbor安装有3种方式：

• 在线安装：从Docker Hub下载Harbor相关镜像，因此安装软件包非常小
• 离线安装：安装包包含部署的相关镜像，因此安装包比较大
• OVA安装程序：当用户具有vCenter环境时，使用此安装程序，在部署OVA后启动Harbor 本文记录通过离线安装的方式部署。 版本说明：

名称	版本说明
docker-compose	1.24.0
harbor	1.7.5

安装docker-compose

$ curl -L "https://github.com/docker/compose/releases/download/1.24.0/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
$ chmod +x /usr/local/bin/docker-compose

安装harbor

$ tar zxvf harbor-offline-installer-v1.7.5.tgz -C /usr/local
$ cd /usr/local/harbor
$ vim harbor.cfg
hostname = 192.168.10.10
ui_url_protocol = http
harbor_admin_password = Harbor12345
$ ./prepare
$ ./install.sh

配置https

上面步骤2.2已经可以满足harbor作为实验安装，但是大多数情况我们需要harbor能够更为安全一些，harbor的一些新的功能特性也在新版本更新说明中有相应说明，例如此1.7.5版本就额外具备着镜像签名，镜像漏洞扫描，存储helm chart、垃圾回收等功能。 https方式分为自签https和向官方机构申请颁发获得https证书，其中后种方式需要的步骤更少，下面内容为自签https步骤。

创建CA密钥对

[root@registry harbor]# pwd
/usr/local/harbor
[root@registry harbor]# openssl genrsa -out ca.key 4096
[root@registry harbor]# openssl req -x509 -new -nodes -sha512 -days 36500 -subj "/C=SC/ST=BeiJing/L=BeiJing/O=example/OU=Personal/CN=yourdomain.com" -key ca.key -out ca.crt

创建web服务器端秘钥对

[root@registry harbor]# openssl genrsa -out yourdomain.com.key 4096
[root@registry harbor]# openssl req -sha512 -new -subj "/C=SC/ST=BeiJing/L=BeiJing/O=example/OU=Personal/CN=yourdomain.com" -key yourdomain.com.key -out yourdomain.com.csr

使web服务器到CA进行签约

无论是使用类似yourdomain.com的 FQDN 还是IP来连接注册表主机，运行此命令以生成符合主题备用名称（SAN）和x509 v3扩展要求的注册表主机证书

cat > v3.ext <<-EOF
authorityKeyIdentifier=keyid,issuer
basicConstraints=CA:FALSE
keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
extendedKeyUsage = serverAuth
subjectAltName = @alt_names
[alt_names]
DNS.1=yourdomain.com
DNS.2=yourdomain
DNS.3=hostname
EOF
[root@registry harbor]# openssl x509 -req -sha512 -days 3650 -extfile v3.ext -CA ca.crt -CAkey ca.key -CAcreateserial -in yourdomain.com.csr -out yourdomain.com.crt
Signature ok
subject=/C=SC/ST=BeiJing/L=BeiJing/O=example/OU=Personal/CN=yourdomain.com
Getting CA Private Key

配置harbor.cfg

[root@registry harbor]# vim harbor.cfg
ui_url_protocol = https
......
#The path of cert and key files for nginx, they are applied only the protocol is set to https
ssl_cert = /usr/local/harbor/harbor.test.cn.crt
ssl_cert_key = /usr/local/harbor/harbor.test.cn.key
#The path of secretkey storage

生成配置和安装

[root@registry harbor]# ./prepare
[root@registry harbor]# ./install.sh

docker客户端主机配置

Docker守护进程将.crt文件解释为CA证书，将.cert文件解释为客户端证书。 所以需要将服务器转换yourdomain.com.crt为yourdomain.com.cert

[root@registry harbor]# openssl x509 -inform PEM -in yourdomain.com.crt -out yourdomain.com.cert

拷贝yourdomain.com.cert，yourdomain.com.key和ca.crt到需要访问仓库的docker主机

  cp yourdomain.com.cert /etc/docker/certs.d/yourdomain.com/
  cp yourdomain.com.key /etc/docker/certs.d/yourdomain.com/
  cp ca.crt /etc/docker/certs.d/yourdomain.com/

以下说明了使用自定义证书的配置

/etc/docker/certs.d/
    └── yourdomain.com:port
       ├── yourdomain.com.cert  <-- Server certificate signed by CA
       ├── yourdomain.com.key   <-- Server key signed by CA
       └── ca.crt               <-- Certificate authority that signed the registry certificate

配置完成后登录

[root@node02 ~]# docker login yourdomain.com
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store
Login Succeeded

故障排除

1、可以从证书颁发者那里获得中间证书。在这种情况下，应该将中间证书与您自己的证书合并以创建证书包。您可以通过以下命令实现此目的：

cat intermediate-certificate.pem >> yourdomain.com.crt

2、在某些运行docker守护程序的系统上，您可能需要在操作系统级别信任该证书。 在Ubuntu上，可以通过以下命令完成：

cp yourdomain.com.crt /usr/local/share/ca-certificates/yourdomain.com.crt
update-ca-certificates

在Red Hat（CentOS等）上，命令是：

cp yourdomain.com.crt /etc/pki/ca-trust/source/anchors/yourdomain.com.crt
update-ca-trust

3、经实验如果是从证书颁发者获得的证书，则不需要在客户端主机配置证书，因为此证书是可信任的，直接在docker客户端主机执行docker login即可成功登录

harbor启用镜像签名、漏洞扫描及helm chart功能

镜像签名简单来说就是为了验证镜像的正确性，保证在镜像传输过程中没有中间人篡改； 漏洞扫描功能是利用的开源clair工具，利用网络更新漏洞库，并且对镜像进行扫描； helm chart是kubernetes的包管理器helm的相关应用文件，相当于Linux的yum。 要启用这些功能，只需要在安装时添加参数"--with-notary --with-clair --with-chartmuseum"即可：

[root@registry harbor]# ./prepare --with-notary --with-clair --with-chartmuseum
Generated and saved secret to file: /usr/local/harbor/secretkey
Generated configuration file: ./common/config/nginx/nginx.conf
Generated configuration file: ./common/config/adminserver/env
Generated configuration file: ./common/config/core/env
Generated configuration file: ./common/config/registry/config.yml
Generated configuration file: ./common/config/db/env
Generated configuration file: ./common/config/jobservice/env
Generated configuration file: ./common/config/jobservice/config.yml
Generated configuration file: ./common/config/log/logrotate.conf
Generated configuration file: ./common/config/registryctl/env
Generated configuration file: ./common/config/core/app.conf
Generated certificate, key file: ./common/config/core/private_key.pem, cert file: ./common/config/registry/root.crt
Copying sql file for notary DB
Generated certificate, key file: ./cert_tmp/notary-signer-ca.key, cert file: ./cert_tmp/notary-signer-ca.crt
Generated certificate, key file: ./cert_tmp/notary-signer.key, cert file: ./cert_tmp/notary-signer.crt
Copying certs for notary signer
Copying notary signer configuration file
Generated configuration file: ./common/config/notary/signer-config.postgres.json
Generated configuration file: ./common/config/notary/server-config.postgres.json
Copying nginx configuration file for notary
Generated configuration file: ./common/config/nginx/conf.d/notary.server.conf
Generated and saved secret to file: /usr/local/harbor/defaultalias
Generated configuration file: ./common/config/notary/signer_env
Generated configuration file: ./common/config/clair/postgres_env
Generated configuration file: ./common/config/clair/config.yaml
Generated configuration file: ./common/config/clair/clair_env
The configuration files are ready, please use docker-compose to start the service.
[root@registry harbor]# ./install.sh --with-notary --with-clair --with-chartmuseum

[Step 0]: checking installation environment ...

Note: docker version: 18.06.1

Note: docker-compose version: 1.24.0

[Step 1]: loading Harbor images ...
Loaded image: goharbor/harbor-adminserver:v1.7.5
Loaded image: goharbor/harbor-portal:v1.7.5
Loaded image: goharbor/harbor-db:v1.7.5
Loaded image: goharbor/registry-photon:v2.6.2-v1.7.5
Loaded image: goharbor/harbor-migrator:v1.7.5
Loaded image: goharbor/harbor-core:v1.7.5
Loaded image: goharbor/harbor-log:v1.7.5
Loaded image: goharbor/redis-photon:v1.7.5
Loaded image: goharbor/nginx-photon:v1.7.5
Loaded image: goharbor/harbor-registryctl:v1.7.5
Loaded image: goharbor/chartmuseum-photon:v0.8.1-v1.7.5
Loaded image: goharbor/harbor-jobservice:v1.7.5
Loaded image: goharbor/notary-server-photon:v0.6.1-v1.7.5
Loaded image: goharbor/notary-signer-photon:v0.6.1-v1.7.5
Loaded image: goharbor/clair-photon:v2.0.8-v1.7.5


[Step 2]: preparing environment ...
Clearing the configuration file: ./common/config/adminserver/env
Clearing the configuration file: ./common/config/core/env
Clearing the configuration file: ./common/config/core/app.conf
Clearing the configuration file: ./common/config/core/private_key.pem
Clearing the configuration file: ./common/config/db/env
Clearing the configuration file: ./common/config/jobservice/env
Clearing the configuration file: ./common/config/jobservice/config.yml
Clearing the configuration file: ./common/config/registry/config.yml
Clearing the configuration file: ./common/config/registry/root.crt
Clearing the configuration file: ./common/config/registryctl/env
Clearing the configuration file: ./common/config/registryctl/config.yml
Clearing the configuration file: ./common/config/nginx/conf.d/notary.upstream.conf
Clearing the configuration file: ./common/config/nginx/conf.d/notary.server.conf
Clearing the configuration file: ./common/config/nginx/cert/harbor.test.cn.crt
Clearing the configuration file: ./common/config/nginx/cert/harbor.test.cn.key
Clearing the configuration file: ./common/config/nginx/nginx.conf
Clearing the configuration file: ./common/config/log/logrotate.conf
Clearing the configuration file: ./common/config/notary/notary-signer.crt
Clearing the configuration file: ./common/config/notary/notary-signer.key
Clearing the configuration file: ./common/config/notary/notary-signer-ca.crt
Clearing the configuration file: ./common/config/notary/root.crt
Clearing the configuration file: ./common/config/notary/signer-config.postgres.json
Clearing the configuration file: ./common/config/notary/server-config.postgres.json
Clearing the configuration file: ./common/config/notary/signer_env
Clearing the configuration file: ./common/config/notary/server_env
Clearing the configuration file: ./common/config/clair/postgresql-init.d/README.md
Clearing the configuration file: ./common/config/clair/postgres_env
Clearing the configuration file: ./common/config/clair/config.yaml
Clearing the configuration file: ./common/config/clair/clair_env
loaded secret from file: /usr/local/harbor/secretkey
Generated configuration file: ./common/config/nginx/nginx.conf
Generated configuration file: ./common/config/adminserver/env
Generated configuration file: ./common/config/core/env
Generated configuration file: ./common/config/registry/config.yml
Generated configuration file: ./common/config/db/env
Generated configuration file: ./common/config/jobservice/env
Generated configuration file: ./common/config/jobservice/config.yml
Generated configuration file: ./common/config/log/logrotate.conf
Generated configuration file: ./common/config/registryctl/env
Generated configuration file: ./common/config/core/app.conf
Generated certificate, key file: ./common/config/core/private_key.pem, cert file: ./common/config/registry/root.crt
Copying sql file for notary DB
Generated certificate, key file: ./cert_tmp/notary-signer-ca.key, cert file: ./cert_tmp/notary-signer-ca.crt
Generated certificate, key file: ./cert_tmp/notary-signer.key, cert file: ./cert_tmp/notary-signer.crt
Copying certs for notary signer
Copying notary signer configuration file
Generated configuration file: ./common/config/notary/signer-config.postgres.json
Generated configuration file: ./common/config/notary/server-config.postgres.json
Copying nginx configuration file for notary
Generated configuration file: ./common/config/nginx/conf.d/notary.server.conf
loaded secret from file: /usr/local/harbor/defaultalias
Generated configuration file: ./common/config/notary/signer_env
Copying offline data file for clair DB
Generated configuration file: ./common/config/clair/postgres_env
Generated configuration file: ./common/config/clair/config.yaml
Generated configuration file: ./common/config/clair/clair_env
The configuration files are ready, please use docker-compose to start the service.


[Step 3]: checking existing instance of Harbor ...


[Step 4]: starting Harbor ...
Creating network "harbor_harbor" with the default driver
Creating harbor-log ... done
Creating redis              ... done
Creating registry           ... done
Creating harbor-db          ... done
Creating registryctl        ... done
Creating harbor-adminserver ... done
Creating clair              ... done
Creating notary-signer      ... done
Creating harbor-core        ... done
Creating notary-server      ... done
Creating harbor-jobservice  ... done
Creating harbor-portal      ... done
Creating nginx              ... done

✔ ----Harbor has been installed and started successfully.----

Now you should be able to visit the admin portal at https://harbor.test.cn.
For more details, please visit https://github.com/goharbor/harbor .

上述功能的具体使用，可参考官方文档

harbor高可用

为了使harbor高可用，即harbor内保存的镜像能够高可用，在一个harbor down掉的时候，还有另外一个存储着相同镜像的harbor仓库供使用，harbor后期的版本包括此版本支持了镜像复制的功能。 在使用镜像复制功能之前，当然是需要安装两个harbor服务（一主一备）

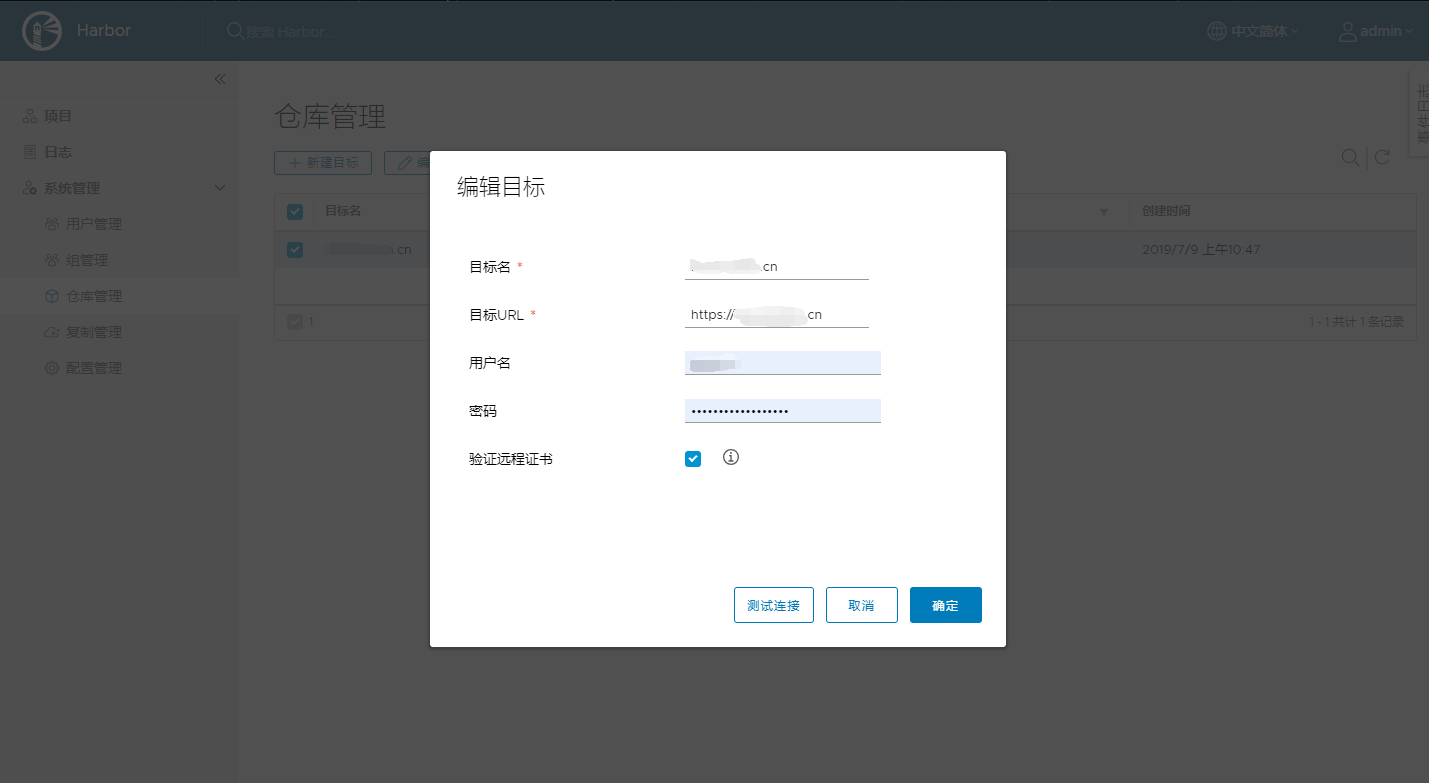

新增复制目标

“系统管理”—>“仓库管理”—>“新建目标” 填写目标名，目标URL，用户名，密码等

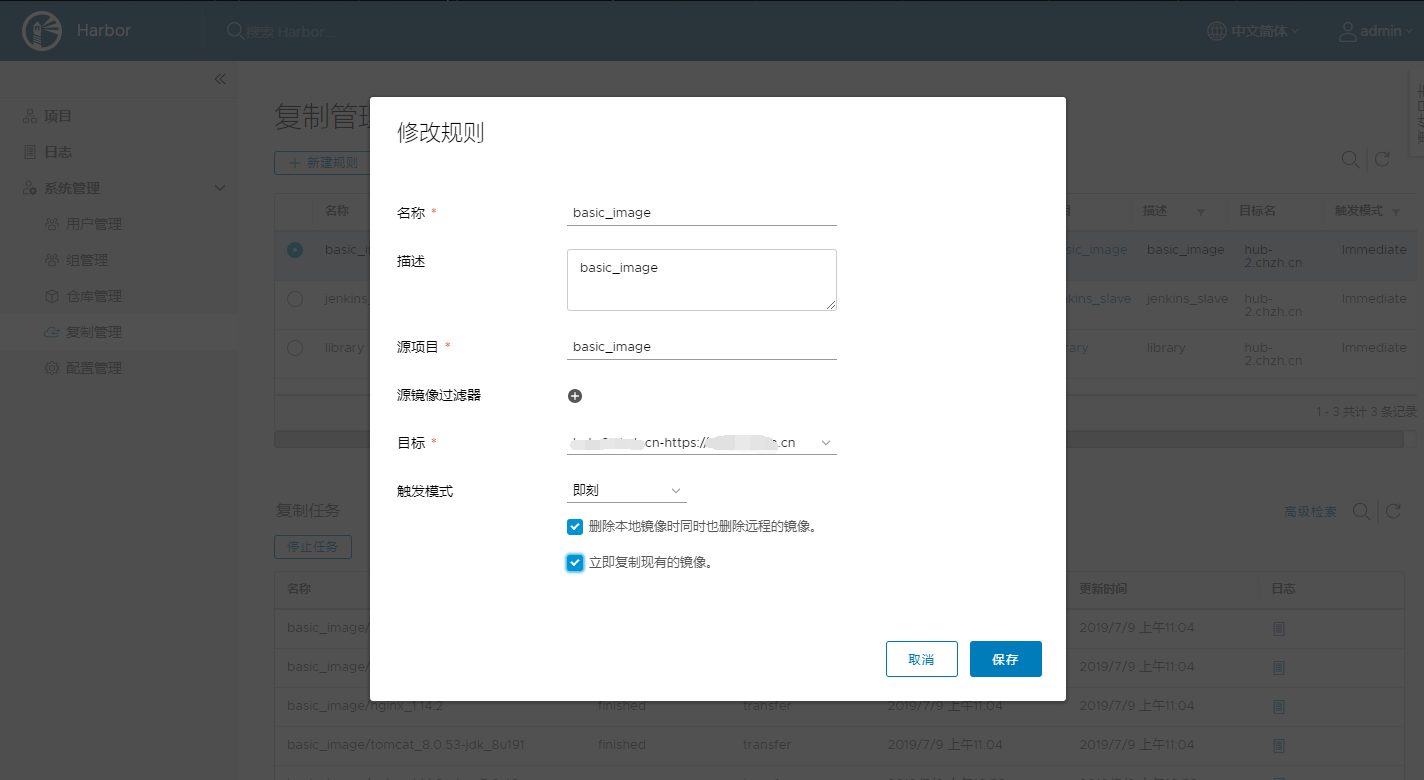

新增复制规则

“系统管理”—>“复制管理”—>“新建规则” 填写名称、描述、源项目、过滤器、目标、触发模式等 其中过滤器支持以下写法： *：匹配任何非分隔符字符序列/。 **：匹配任何字符序列，包括路径分隔符/。 ？：匹配任何单个非分隔符/。 {alt1，...}：如果其中一个以逗号分隔的替代项匹配，则匹配一系列字符。

测试

按照设置的规则，观察是否立即复制或者push镜像到主harbor中，观察备harbor中的镜像是否被复制

harbor常规操作

暂停harbor docker-compose stop docker容器stop，并不删除容器 恢复harbor docker-compose start 恢复docker容器运行 停止harbor docker-compose down -v 停止并删除docker容器 启动harbor docker-compose up -d 启动所有docker容器 修改harbor的运行配置，需要如下步骤： 停止harbor docker-compose down -v 修改配置 vim harbor.cfg 执行./prepare已更新配置到docker-compose.yml文件 ./prepare 启动 harbor docker-compose up -d
